Price: 6,999.00 USD

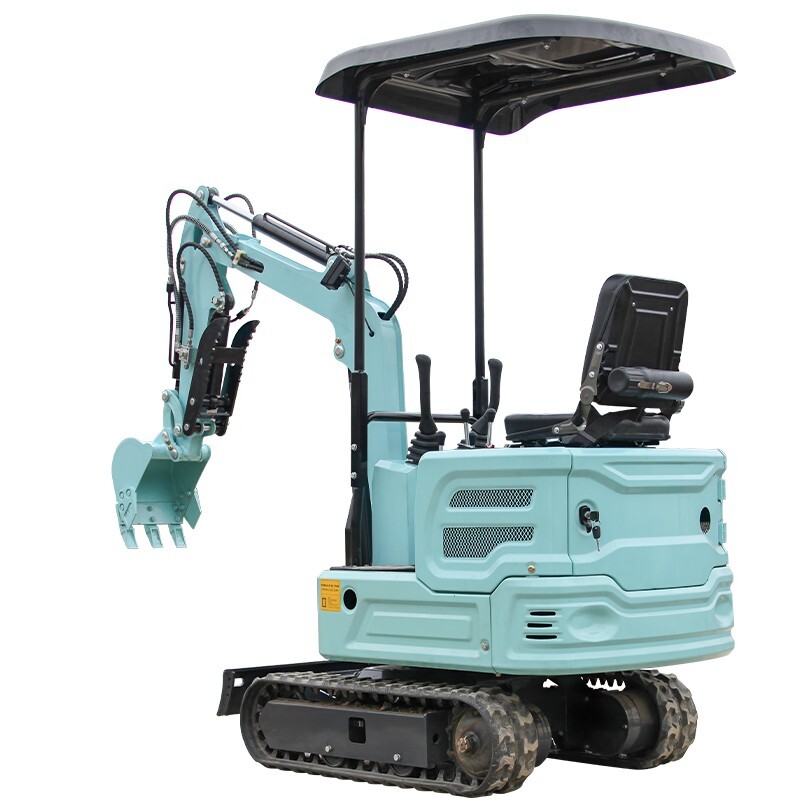

2025 New Mini Excavator, Engineering Tracks, Kubota Engine 11.3HP USA warehouse
- Free unloading: We can provide free unloading service
- Detachable inspection panel
Convenient for inspection andinspection of sprockets andtravel motors can be morerigorous.
Widely applicable
Adoptchain transmission (four driving forces). so thatthe transmission efficiency is higher
• Oil pipeline
A melal oil pipe is used above the robotic arm, which is noteasily damaged during work.
• Oil cylinder
Inverting the cylinder can effectively protect the cylinder rodfrom damage and extend the service life of the cylinder.
• Operating handle
A single lever realizes forward, backward, steering andother actions,which is convenient for operation and hashigh and low speed functions.
• Multifunction
Can be combined with a variety of accessories, such as fork, grapple,rotary drill, etc. (accessories need to pay additional, but can enjoy a discount for combination purchase)
Note: Please contact us in advance to make an appointment to view the goods from the bill of lading and warehouse.
SIZE | |
Overall dimensions(mm) |
2780*930*2220 |
Bucket width(mm) |
176 |
Center of gravity clearance from ground(mm) |
370.078 |
Gradeability(%) |
30 |
Maximum excavation height(mm) |
2479.04 |
Maximum unloading height(mm) |
1826.01 |
Track specifications(mm) |
180*72*37 |
Hydraulic oil tank capacity(L) |
12.5 |
DRIVE | |
Maximum rotational speed (rpm) | 3000 |
Maximum power(kw) | 8.2 |
Displacement (L) | 0.479 |
Number of cylinders | Double cylinder |
WALKING CHARACTERISTICS | |
Cooling method | Water cooling |
Engine oll replacement amount(L) | 1.5 |
Fuel from | Diesel fuel |
Fuel tank capacity(L) | 5.5 |
After payment, please give us 5-10 working days to handle the shipment and delivery of the goods.
We will try our best to meet your delivery requirements, if you have the ability to unload, please communicate with us in time, if you have difficulties in unloading, please provide the address of your nearby lo
To provide a safe experience, eBay only allow payment methods that offer strong protection for buyers and sellers.
Item specifics
-
Condition
-
-
Rod length
-
31.50inch
-
Transport height
-
86.97inch
-
Max Dig Depth
-
5′ – 6′
-
MPN
-
DS-16G
-
Climbing ability
-
30%
-
Fuel form:
-
Diesel oil
-
Equipment Type
-
Mini Excavator
-
Bucket capacity
-
0.014m³
-
Number of cylinders
-
2
-
Model Year
-
2025
-
Ground specific pressure
-
25.53kpa
-
Net Horsepower (HP)
-
10 – 20
-
Maximum excavation height
-
97.60inch
-
Transport width
-
36.10inch
-
Maximum digging radius
-
112.28inch
-
Maximum digging force
-
9.2kn
-
Low/high speed
-
0-1.5km/h
-
Maximum unloading height
-
71.89inch
-
Maximum speed
-
3000rpm
-
Dodging plate width
-
34.84inch
-
Theoretical fuel consumption
-
0.8-1.2l/h
-
Bucket width
-
11.81inch
-
Maximum digging depth
-
61.50inch
-
Make
-
Kubota
-
Cooling mode
-
water-cooling
-
Boom length
-
58.15inch
-
Displacement
-
0.479L
-
Transport length
-
88.35inch
-
Engine type
-
Z482
-
Engine Brand:
-
Kubota
-
Fuel oil label
-
Number 0 /-10
-
Model
-
DS-16G
-
Engine 0il changes
-
1.5L
-
Counterweight ground clearance
-
14.57inch
-
Hydraulic Tank
-
12.5L
-
Maximum horsepower
-
11.23ps
-
Country/Region of Manufacture
-
China
-
Working weight
-
2000lb
-
Fuel Tank
-
5.5L
