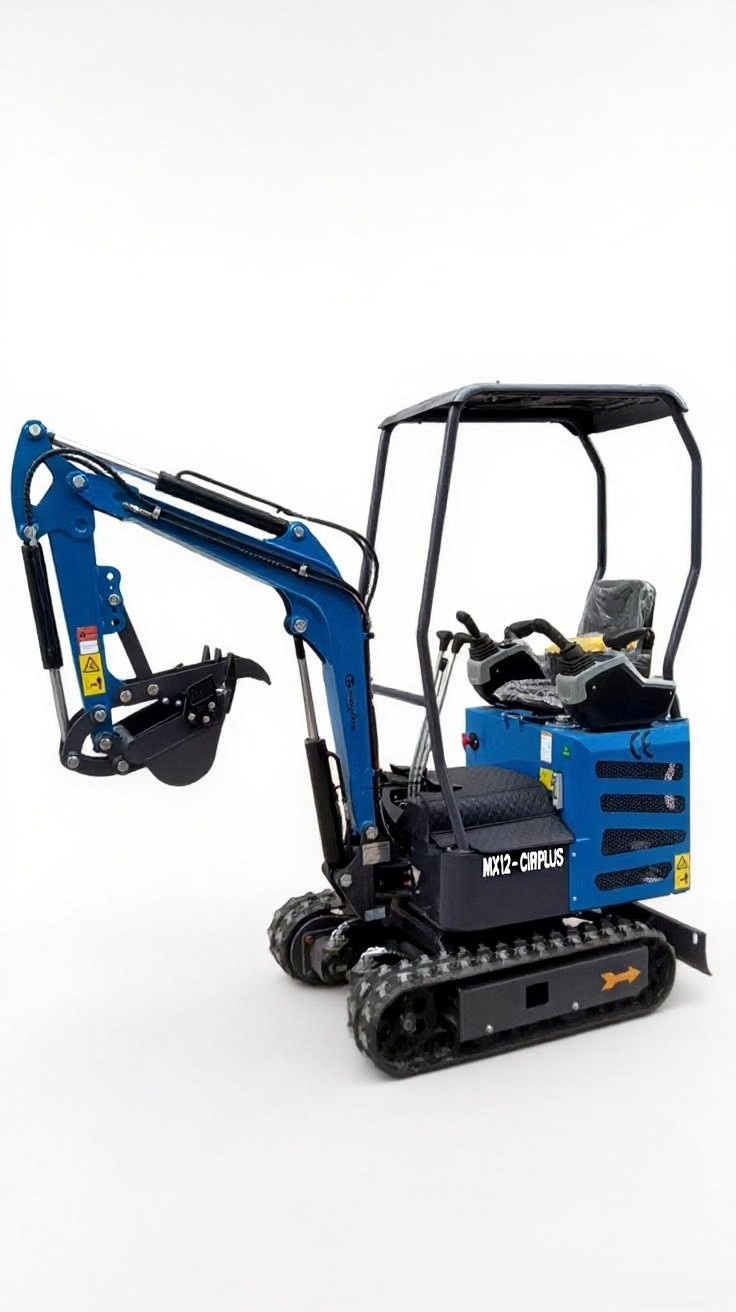

AGT MX12-C(PLUS)R 1-Ton 13.5 HP Mini Excavator With RATO EPA Engine

Engine

– Maximum Power (Kw): 9.8

– Maximum Speed (rpm): 3600

– Number of Cylinders: 1

– Cooling Method: Air-cooled

– Engine Oil Capacity (L): 1.1

– Fuel Type: Gasoline

– Fuel Label: 92#

– Theoretical Fuel Consumption (L/h): /

– Main Pump Model/Type: High and Low Pressure Gear Pump (6+3)

– Main Pump Brand: 6+3

– Rated Pressure (Mpa): 16

– Maximum Flow Rate of Main Pump (L/min): 21.6

Hydraulic System

– Multi-way Valve: 8-way Semi-hydraulic Multi-way Valve

– Multi-way Valve Brand: 8-way Semi-hydraulic Control

– Rated Pressure (Mpa): 16

– Travel Motor Speed Reduction Type: BMER3-350

– Travel Motor: Hydraulic

– Motor Displacement: 350

– Swing Motor Speed Reduction Type: BMI1-315

– Motor Displacement: 315

Track

– Rubber Track (Track Width * Pitch * Number of Links): 1807237

– Steel Track (Track Width * Pitch * Number of Links): –

– Rubber Pads: –

– Pedal: –

– Canopy: •

– Handrail: •

– Iron Chain: ○

– Rake: ○

– Log Grab: ○

– Ripper: ○

– Hydraulic Hammer: ○

– Thumb Grab: Mechanical Thumb Grab

– Configuration: –

– Tensioning Method: Mechanical Tensioning

– Air Conditioning: –

Fuel Tank

– Fuel Tank Capacity (L): 6.6

– Hydraulic Oil Tank Capacity (L): 10
