AGT QK16R Hydraulic Mini Excavator Micro Digger RATO 420D Gas Engine

Price: 7,200.00 USD

Model	QK16R	QH12&H12
Working Weight(kg)	900	830
Bucket capacity(m³)	0.016	0.03
Travel speed low/high speed(Km/h)	0-1.8	0-1.8
A Maximum Digging Height(mm)	2400	2550
B Maximum Unloading Height(mm)	1960	1780
C Maximum Digging Depth(mm)	1670	1644
E Max. digging radius(mm)	3060	2960

KH16R and QK16R are the same machine with the same appearance and functions. (KH16R=QK16R )

Body	Model	QK16R	QH12	L12
	J Overall Length(mm)	2870	2895	2200
	K Overall Width(mm)	910	958	930
	L Overall Height(mm)	2283	2200	2250
	Bulldozer Width/Height	907/210	907/400	180/210

Engine	Model	QK16R	QH12	L12
	Engine Brand	RATO	B&S	B&S OR Koop
	Engine Model	R420D	13.5HP	KD192F
	Max. power(Kw)	8.6	9.8	7.6
	Max. speed(rpm)	3600	3600	3600
	Cylinders	1	1	1
	Cooling method	fan cooling	fan cooling	water cooling
	Engine oil change quantity(L)	1.1	1.1	1.1
	Fuel Type	92# Gasoline	92# Gasoline	Diesel
	Theoretical fuel consumption(L/h)	0.5-1.2	0.5-1.2	1-1.6

Hydraulic system	Model	QK16R	QH12	L12
	Main pump type/model	gear pumps/06	gear pumps/06	gear pumps/06
	Main pump brand	Tianjin Xingzou	Tianjin Xingzou	Tianjin Xingzou
	Rated set pressure(Mpa)	23.5	16	23.5
	Maximum flow rate of main pump(L/min)	21.6	21.6	21.6
	Multi-way valve	8 manually operated multi-way valves	8 manually operated multi-way valves	8 manually operated multi-way valves
	Brand of Multi-way valve	(Hua Sheng)	Hua Sheng	Tai Heng
	Rated Set Pressure(Mpa)	16	16	16
	Hydraulic Linear Motor type	BM6-310	BM6-315	BM6-310
	Linear Motor Brand	Li Yuan	Li Wo	Li Yuan
	Hydraulic Servo Motor type	BM2-250	BM2-250	BM2-315

Feature:

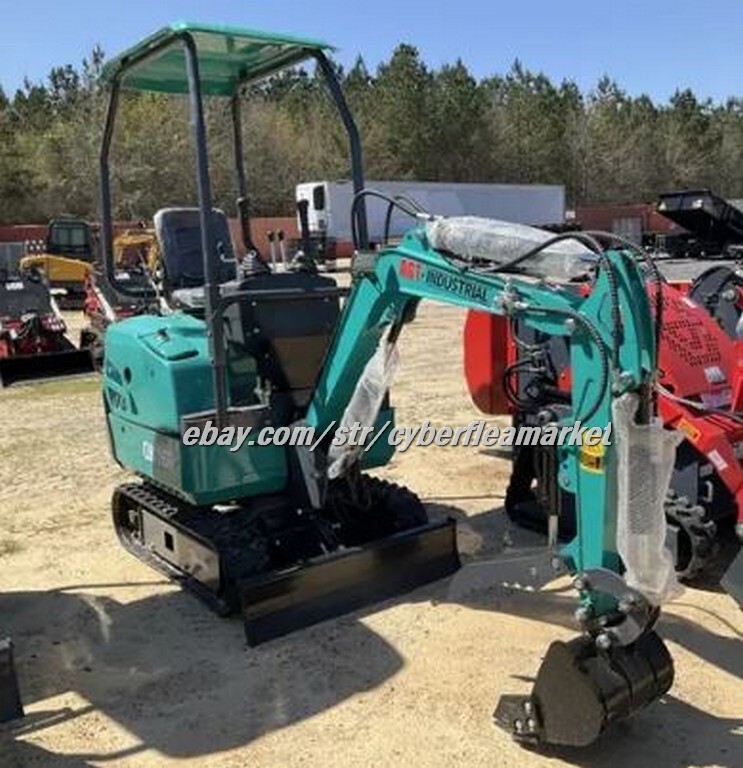

Introducing the Mini Excavator with an canopy, powered by a reliable Rato engine. Weighing 827 kg with a bucket capacity of 0.016 m³, it’s agile and efficient, with a climbing ability of 30% and travel speeds of 0-1.8 km per hour. Equipped with a gear pump/06 hydraulic system and BM6-310/BM2-250 hydraulic motor types, it ensures smooth operation. With a maximum digging height of 94.48 inch and a digging depth of 65.75 inch, it’s versatile for various tasks.

Technical Data:
