Price: 7,359.08 USD

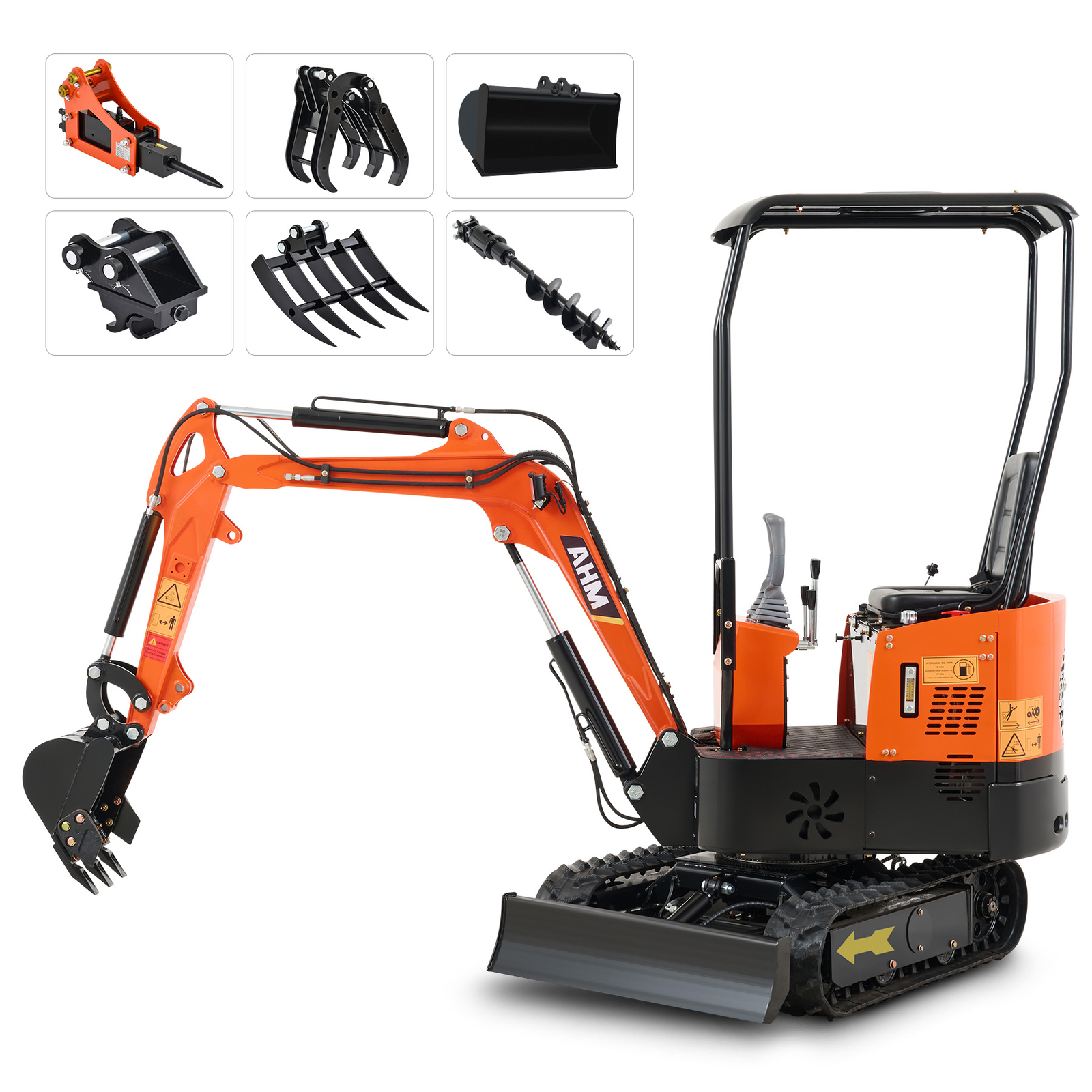

AHM 1 Ton Mini Crawler Excavator with 6 Attachments for Backyard Farm Digging
2161 lb. Mini Excavator: With its compact design, 2161 lb. operating weight, and 5′ maximum digging depth, this light yet powerful mini excavator by Creworks is tailor-made for construction in narrow lanes, alleys, backyards, gardens, and other tight spaces.
Multiple Attachments Included: This compact excavator comes with attachments for a wide range of jobs. The grapple and bucket grab and lift tree branches, the auger drill digs holes for fence poles, the hammer handles concrete and asphalt rocks, the rake removes and piles brush, roots, and stumps, and the quick hitch changes attachments.
Always Stay Informed: The integrated electronic display enables you to conveniently record the total working hours of the entire system and provides real-time monitoring of voltage levels during each operation, letting you stay in control and proactively address potential issues.
Dependable Design: Crafted from robust steel for lasting durability, our compact digger features enhanced stability with the addition of a rear counterweight. The widened dozer, coupled with rubber tracks, let the excavator move on diverse surfaces and offer exceptional traction without damaging cabro paving, indoor flooring, or pavement.
Efficient Motor: This heavy-duty mini digger features a premium Briggs & Stratton 13.5 hp engine for powerful yet fuel efficient operation and superior heat dispensation. Say goodbye to annoying vibrations, enjoy seamless operation, and count on it sticking around for the long haul.
Specifications
-
Material: Steel, Rubber
Engine Model: Briggs & Stratton 25T2
Rated Power: 13.5 hp (10 kW)
Rated Speed: 3060 rpm
Fuel Tank Volume: 1.7 gal. (6.6 L)
Fuel Consumption: 0.3 gal./h (1 L/h)
Hydraulic Tank Volume: 3.3 gal. (12.7 L)
Overall Track Length: 48.5 in. (1230 mm)
Platform Ground Clearance: 16.2 in. (410 mm)
Max. Bucket Digging Force: 2585 lbf (11.5 KN)
Max. Digging Depth: 68.9 in. (1750 mm)
Max. Dumping Height: 62.6 in. (1590 mm)
Max. Digging Radius: 120 in. (3050 mm)
Max. Slope Grade: 30°
Net Weight: 1874 lb. (850 kg)
Packing List
1x Mini Excavator
1x Filter
4x Pipe Clamps
4x Grease Fittings
1x Hose Nozzle
1x Socket
1x Grease Gun
1x Hex Wrench
1x Socket Lever
1x Adjustable Wrench
4x Wrenches
1x Lubricating Grease
1x Tool Box
Exceptional Strength: Powered by a robust 13.5 hp engine, AHM’s 1 ton mini excavator offers a 5.9 ft. digging depth and 2585 lbf of digging force. It’s built for tough jobs such as excavation, lifting, landscaping, demolition, and material handling
6 Helpful Attachments Included: This small crawler comes with 6 attachments: hammer, log grapple, quick hitch, rake, grading bucket, and auger. These tools allow you to break concrete, move logs, clear debris, dig, and drill holes with ease
Compact Size: With a maximum width of 3 feet, this mini digger easily fits through gates, between buildings, and into tight workspaces like backyards and farms, all while delivering ample power for larger construction sites
Comfortable to Use: With intuitive front joysticks, an adjustable seat, and a shielding canopy, this small crawler offers a comfortable work setting that helps reduce fatigue and boosts productivity during extended hours
Heavy-Duty Tracks: The 48.5 in. all-terrain tracks on this trench digger provide outstanding traction on challenging surfaces like loose soil, rocky paths, muddy areas, gravelly grounds, as well as rugged landscapes
Item specifics
-
Condition
-
-
Brand
-
AHM
-
Net Power
-
13.5 hp
-
Feature
-
ESCP
-
Material
-
Q345B Steel, Rubber
-
Color
-
Black, Yellow
-
Canopy Height
-
7.2 ft.
-
Overall Length with Arm
-
7 ft.
-
Chassis Length & Width
-
4.4 x 3 ft.
-
Track Length & Width
-
4 x 0.6 ft.
-
Engine Model
-
LCT CMXX 420
-
Torque
-
21 lb.-ft. @ 3050 rpm
-
Seat Height
-
3.6 ft.
-
Swing Radius
-
2.7 ft.
-
Max. Lift Height
-
8.2 ft.
-
Max. Digging Depth
-
5 ft.
-
Max. Reach
-
9.7 ft.
-
Load Capacity
-
1 Ton
-
Net Weight
-
2161 lb.
-
Bucket Dimensions
-
1.3 x 2.6 ft.
-
Equipment Type
-
Briggs & Stratton
-
Model
-
6-AMT
-
Max Dig Depth
-
5′ – 6′
-
Net Horsepower (HP)
-
10 – 20
