EPA B&S Tracked 1.6 Ton Hydraulic Mini Excavator Expanded Undercarriage Digger

Price: 7,350.12 USD

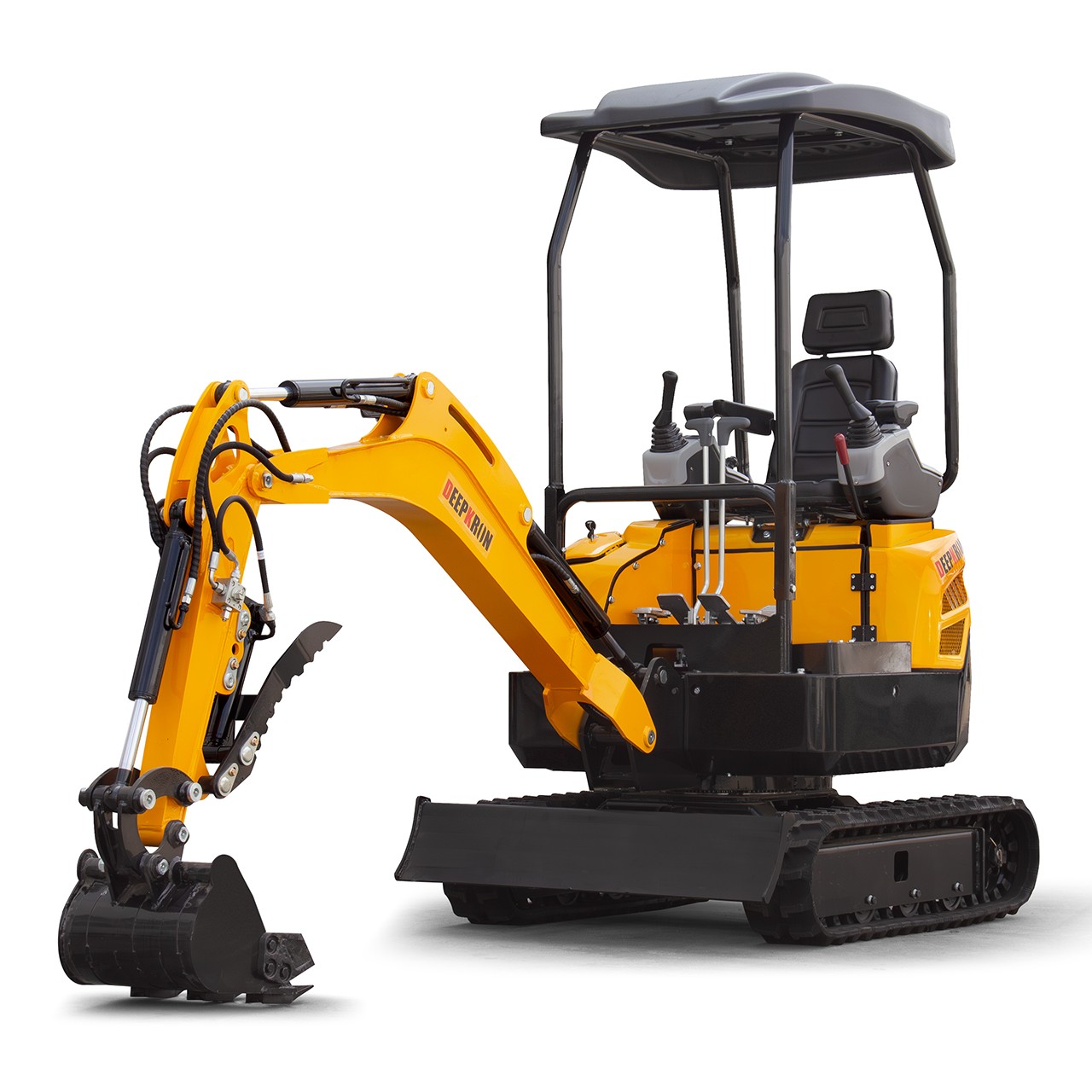

Introducing the DK-16P Mini Excavator, 1.6 Ton (3527lbs) Operation Weight, 2025 Newest Upgraded Model.



The excavators are already in USA warehouse in Chicago, IL now, place order now and you will get the machine in 2-7 days only!

With a focus on flexibility, ease of transport, and superior heat dissipation, the DK-16P is your go-to solution for a wide range of applications, including planting, digging, applying fertilizer, and weeding in orchards.

DK-16P Mini Excavator Key Features



EPA Certified USA Briggs & Stratton XR2100 Engine, 9.9kw, 13.5HP

High-end hydraulic operating system

Expanded undercarriage: 1100mm expanded undercarriage width, enhance the machine’s stability, handles rough terrain.

Zero Tail Swing (ZTS): Allows 360° rotation without exceeding the track width, enhancing safety in narrow areas.

Oil-pump radiator: Superior heat dissipation enables prolonged machine performance.

Hydraulic lock: One bottom on the control panel, could lock the machine.

Hydraulic valve: To prevent hydraulic oil leaks.

High-end seat with headrest, upgraded ceiling.

Equiped with 400mm bucket and hydraulic thumb.

With oil-tank protective board.

What makes the DK-16P more outstanding.

1. Briggs & Stratton XR2100 Engine

Equipped with an EPA certified Briggs & Stratton XR2100 13.5HP engine, ensuring compliance with environmental standards while delivering powerful performance.

2. Upgraded Design

Full steel plate body ensures long-lasting durability.

Heavy-duty undercarriage.

Zero-tail-swing design.

Expanded undercarriage.

Streamlined body contours.

3. Favorable Heat Dissipation

Equiped with oil pump radiator, engineered for favorable heat dissipation effects, ensuring optimal performance even during extended usage.

4. High quality spare parts

Joystick console and foot pedal system, pilot-operated hydraulic system reduces lever effort by 40% while improving precision, with safety lock.

3-key-elements of the slewing system- swing motor, slewing bearing, and central swing joint, we are using the high quality parts, that could much reduce the broken probability. (Some machines reduce cost in these parts, that are easy to broke, once broken they’re very difficult in repairing, you need to disassemble the machine internals.)

High quality dual gear pumps, main Control Valve, travel drive motors, gasoline tank with protective plates, hydraulic system with control valve.

High-precent rubber tracks, much heavier, and at least 3-years life-time.

5. Could equiped with most attachments

You can get more optional attachments to make your machine multi-functional, please visit our store or contact us freely.

Specifications:

Operation weight: 1600kg

Track shoe width: 180mm

Track shoe length on ground: 1350mm

Max. Digging height: 2490mm

Max. Dumping height: 1750mm

Max. Digging depth: 1650mm

Max. Digging radius: 2750mm

Engine brand: Briggs & Stratton

Engine model: XR2100

Engine type: Petrol

Engine power: 9.9kw, 13.5HP

Hydraulic system pressure: 16Mpa

Bucket volume: 0.028m³

Bucket width: 400mm

Climbing angle: 35 degree

Turning angle: 360 degree

Max. Bucket digging force: 6.5Kn

Max. Arm digging force: 13Kn

Rotation speed: 10-13rpm

Travel speed: 0-2.2km/h

In Package:

1 Unit x Mini Excavator (As in the pictures)



Shipping to US:

We provide free shipping to your door address by truck, about 2-7 days delivery.

Please know the cost do not include the final truck unloading fee when the machine reaches to you. If you need unloading service please contact us.

You could check and pick up the machines in our warehouse, shipping costs will be deducted from the total amount.

Warehouse address: Chicago, IL, 60609, US.



Shipping to outside US:

We are able to ship to other countries, please contact us to check about the detailed shipping cost to your address.



Warranty:

1-Year factory warranty.

Return:

We do not accept returns.

We will send test photos and videos before shipping, and the machines will be packed very safety and packed with secure wooden case.
