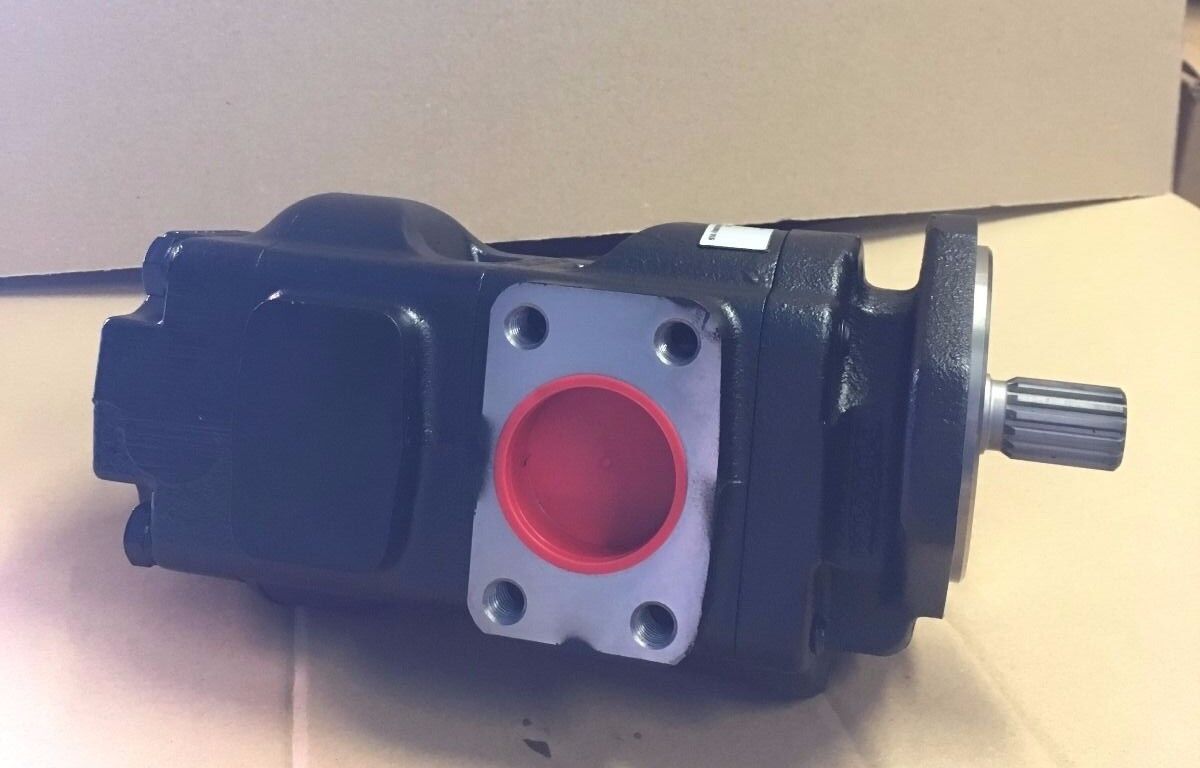

Genuine Parker/JCB 3CX Twin hydraulic pump 20/925338 33 + 23cc/rev Made in EU

Genuine Parker/JCB 3CX Twin hydraulic pump 20/925338 33 + 23cc/rev Made in EU

JCB 3CX ULTRA TWIN HYDRAULIC GEAR PUMP ( Genuine Parker Made in EU Not manufactured in India so will last more than 5 minutes !!!!)

Rotation-Clockwise (looking from shaft end)

1” Diameter  15 tooth SAE spline16/32 Pitch

SAE B 2 Hole mounting flange

Front pump displacement 33 cc/rev (33L/Min per 1000 rpm)

Rear pump displacement  23 cc/rev (23L/Min per 1000 rpm)

Single 2” SAE flange inlet

Front pump outlet 1 1/16”-12 UNF threaded

Rear pump outlet 7/8”-14 UNF threaded

Maximum working pressure on front pump 250 bar

Maximum working pressure on rear pump 275 bar

 Max. Input shaft torque 460 Nm

Replaces the following JCB part numbers

 20/925338

  *Please note these are genuine Parker/Ultra pumps for JCB machines.

They are manufactured and tested in the same factory as JCB units. They carry a full manufacturers 12 month warranty and once fitted will give the same life as the original unit.
