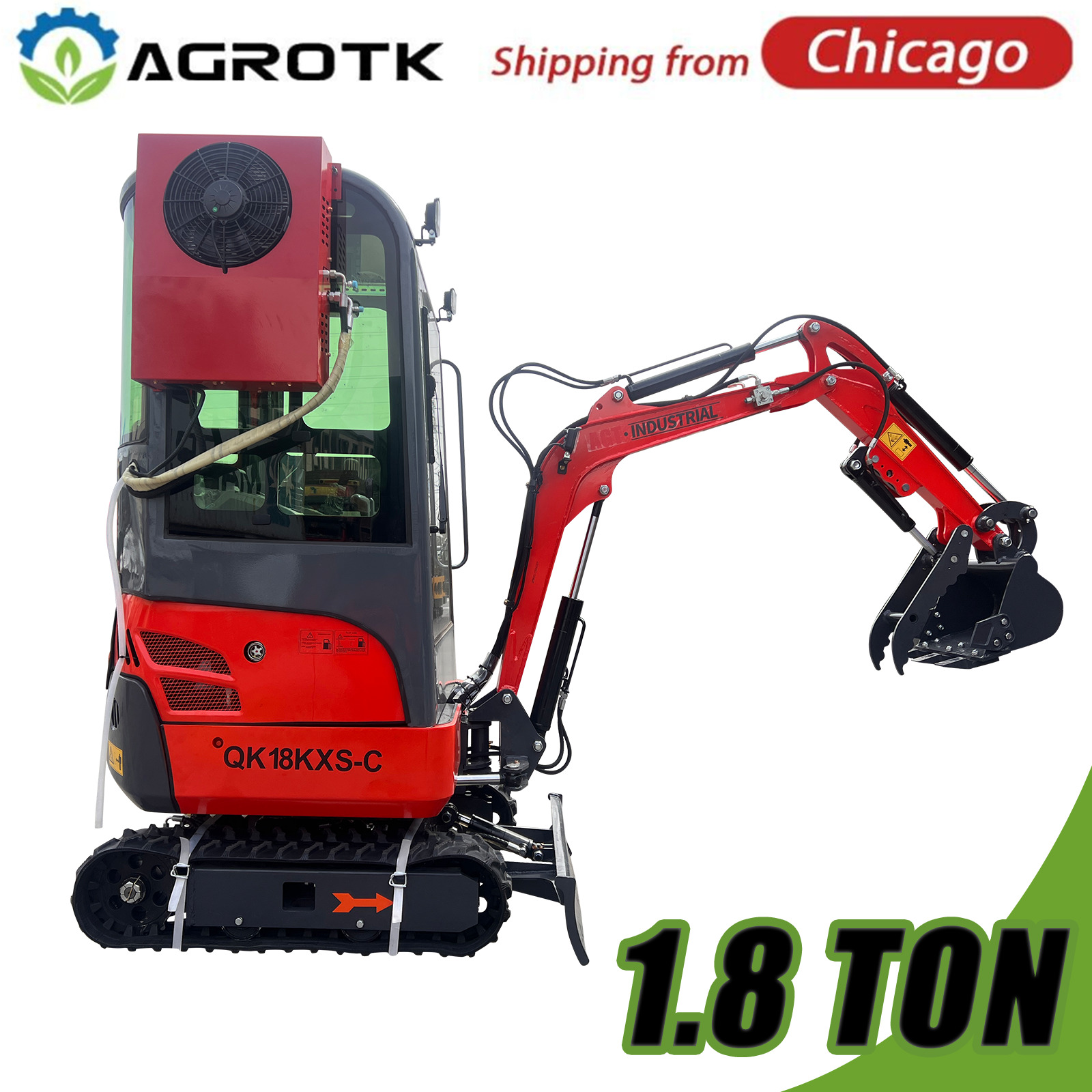

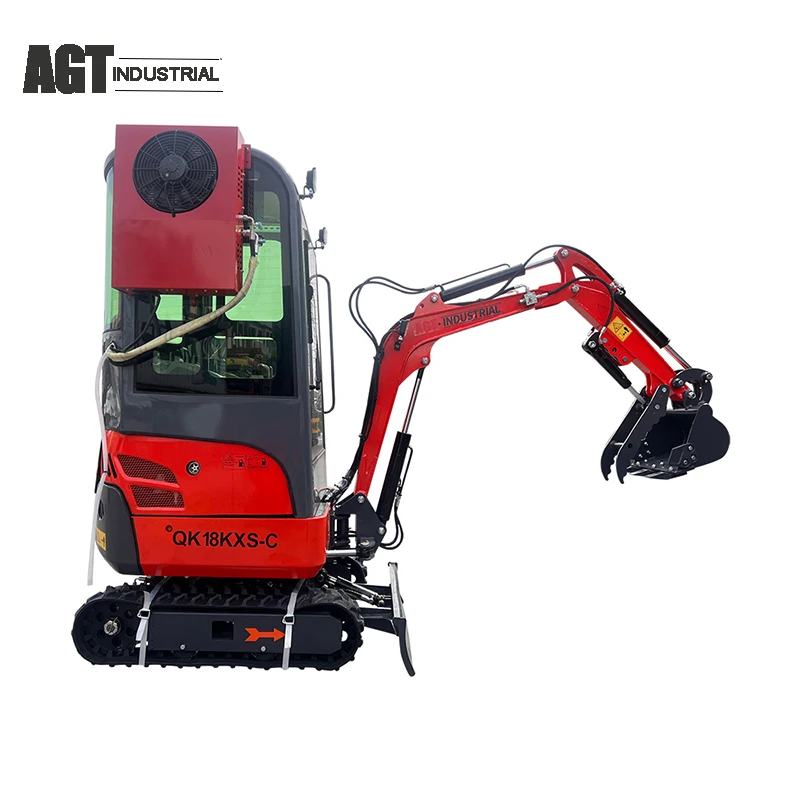

Hydraulic Mini Excavator Digger Kubota Diesel Engine with Air Conditioner&Cab

Price: 12,998.99 USD

welcome to our store!

Shipment from Chicago!

-❤————-❤—————❤—————-❤—————-❤—————–❤————–❤—————❤————–❤————❤————

Hydraulic Mini Excavator Digger Kubota Diesel Engine with Air Conditioner&Cab

Model	QK18KXS-C	QK18RXS-C
Working Weight(kg)	855	845
Bucket capacity(m³)	0.025	0.025
Travel speed low/high speed(Km/h)	0-1.5	0-1.5
A Maximum Digging Height(mm)	2350	2350
B Maximum Unloading Height(mm)	1600	1600
C Maximum Digging Depth(mm)	1300	1300
E Max. digging radius(mm)	2460	2460

Engine	Model	QK18KXS-C	QK18RXS-C
	Engine Brand	Kubota	RATO
	Engine Model	D722-E4B-SXN-1	R500
	Max. power(Kw)	10.2	8.6
	Max. speed(rpm)	3600	3600
	Cylinders	3	1
	Cooling method	water cooling	fan cooling
	Engine oil change quantity(L)	3.8	1.1
	Fuel Type	Diesel	92# Gasoline
	Theoretical fuel consumption(L/h)	0.5-1.2	0.5-1.2

Hydraulic system	Model	QK18KXS-C	QK18RXS-C
	Main pump type/model	gear pumps/08	gear pumps/06
	Main pump brand	Tianjin Xingzou	Tianjin Xingzou
	Rated set pressure(Mpa)	23.5	16
	Maximum flow rate of main pump(L/min)	21.6	18
	Multi-way valve	8 manually operated multi-way valves	8 manually operated multi-way valves
	Brand of Multi-way valve	(Bei Fang)	Tai Heng
	Rated Set Pressure(Mpa)	16	16
	Hydraulic Linear Motor type	BM6-310	BM6-315
	Linear Motor Brand	Li Yuan	Li Wo
	Hydraulic Servo Motor type	BM2-250	BM2-315
