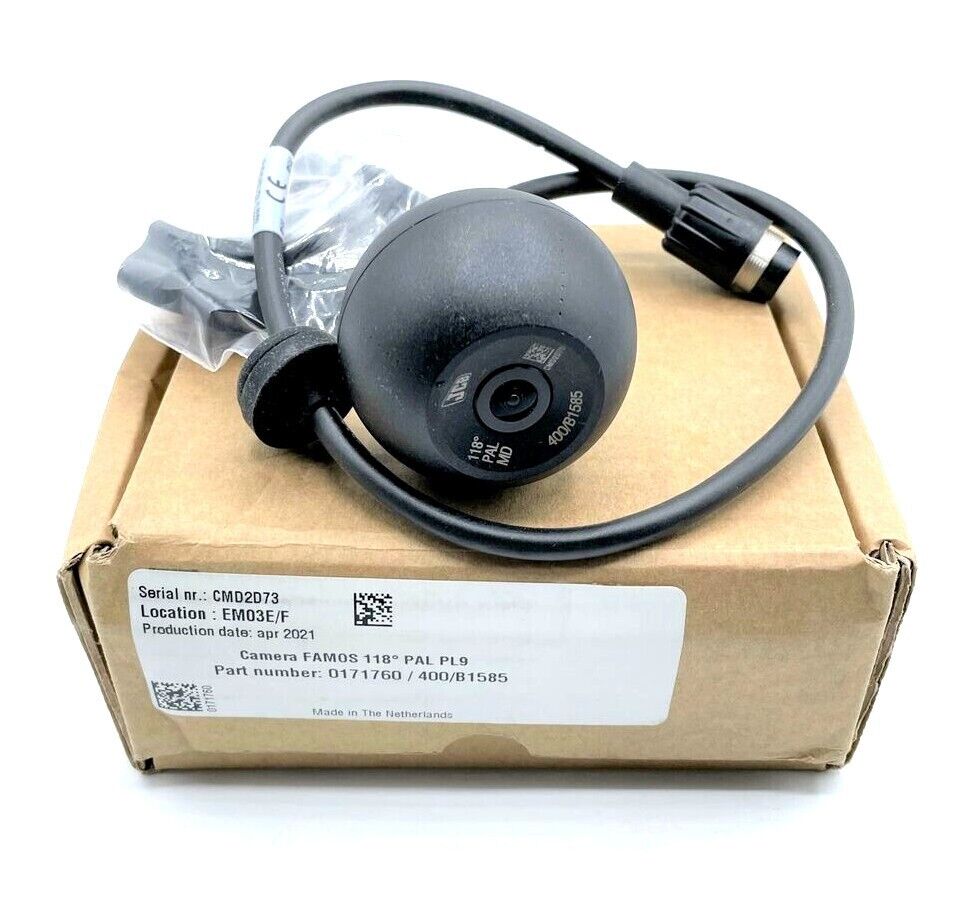

New JCB ORLACO FAMOS 118 DEGREES PL9 PAL Reversing Rear CAMERA 0171760 400/B1585

 BUY NOW ON EBAY


Price: 369.85 USD

Orlaco FAMOS camera 118º PAL

The Orlaco FAMOS camera 118º PAL is an extreme sturdy, compact industrial camera that can be used in virtually all vision solutions on machines, vehicles and vessels. The Advanced CMOS sensor camera is shock and vibration-proof, 100% waterproof, has heated lens glass and provides the best possible image in all weather conditions. In addition, the integrated Safety ticker detects ‘frozen’ images, so that you definitely know that the camera is active.

The new FAMOS cameras are characterized by hardware enhancements. The redesign has reduced the number of parts, which has increased the reliability of the camera further. This has allowed the camera to achieve the highest EMC standards. With its advanced CMOS sensor, the camera has a light sensitivity of 0.05 lux. The new lens in this camera has heated glass as standard, with a special hard coating to prevent scratches.

Technical specifications

Input voltage

12…24V/DC

Connector

Orlaco 4-pins male

Cable

0,5m multi cable

Vibration resistance

50G

Protection class

Watertight IP67, IP69K

Operating temperature

-40ºC to +85ºC

Housing

High impact automotive synthetic thermoplastic polymer

Weight

0,21kg

Dimensions

ø55mm
