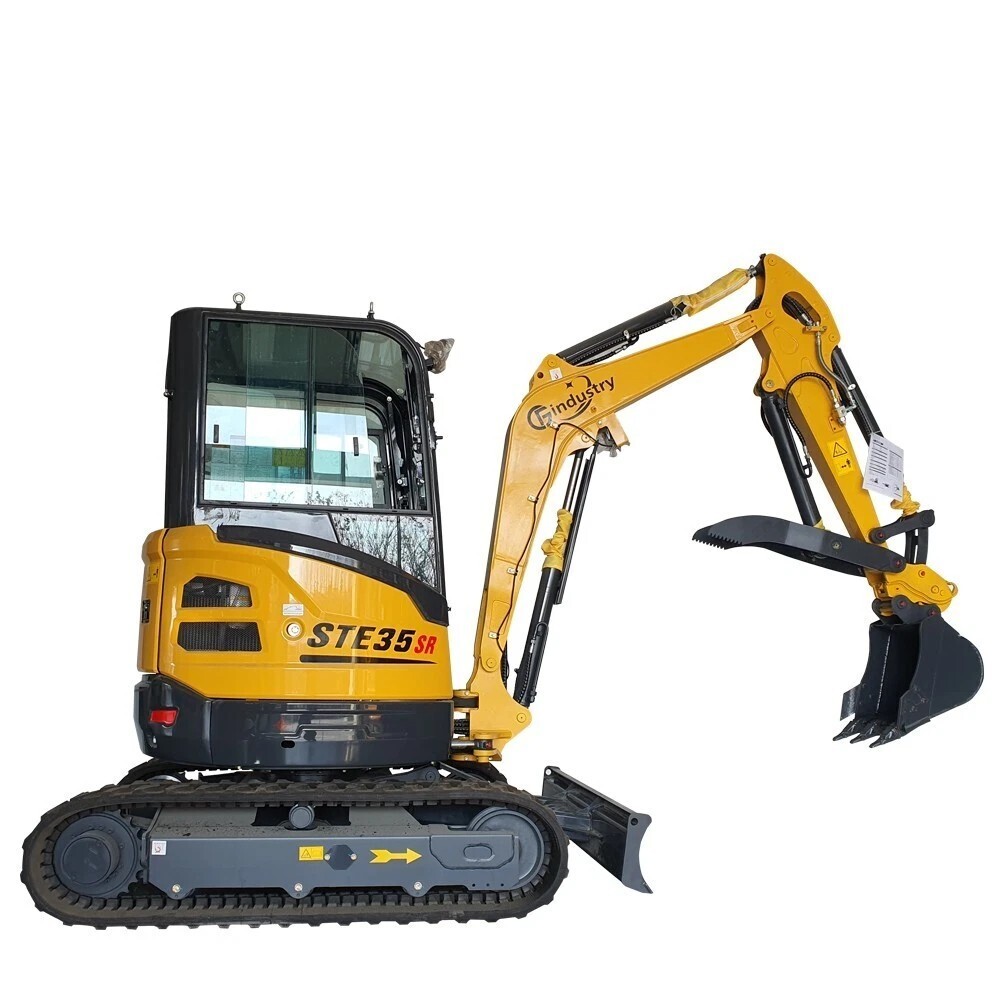

STE35SR 2.8Ton Mini Excavator Hydraulic Digger Crawler 25HP Yanmar Diesel Engine

Features:

• This 2.8-ton mini excavator combines compact design with powerful performance, featuring a 9.19-foot maximum digging depth for efficient work in tight spaces like driveways, backyards, and gardens. Equipped with a hydraulic thumb, internal hydraulic hoses for added safety, and rear-opening compartments for easy maintenance, it’s built for reliability and convenience.

Technical Details:

• Transport Length(armlowered):4200mm
• Overall height(top ofcanopy):2480mm
• Undercarriage Width:1550mm
• Undercarriage Length:2020mm
• Upperbody width(zerotail):1400mm
• Max. digging height:4390mm
• Max. dumping height:3060mm
• Max. digging depth:2800mm
• Max. vertical diggingdepth:2310mm
• Max. diggingradius:4800mm
• Max. digging radius, at ground level:4680mm
• Min. tail swingradius:775mm
• Maximum Dozer lift Height:300mm
• Maximum Dozer Dig Depth:320mm

ENGINE

• Model:YANMAR 3TNV8OF
• Type:Vertical, water cool, 4-cycle
• No.of cylinder:3
• Emission:EPA Tier 4 Final/Europe Stage V
• Displacement:1.267L
• Power output:14.6kW/2400rpm

HYDRAULIC SYSTEM

• Max. hydraulic flow:87L/min

DIGGING FORCE

• Bucket digging force:24kN
• Arm digging force:14.8kN

BUCKET

• Type:Backhoe bucket
• Bucket capacity:0.06m3
• Type:Axial piston motor
• Track roller:2×3
• Track shoes:2×42
• Travel speed:2/3.1km/h
• Max.Drawbar pul:29kN

SWING SYSTEM

• Swing speed:0-10r/min
• Brake type:Pressure release mechanicalbraking

REFILLING CAPACITIES &LUBRICATIONS

• Fuel tank: 33L
• Cooling system: 5L
• Engine oil: 3.4L

Warranty:

• 1 Year Warranty Offered.

​

• We pride ourselves on our customer service, in the unlikely event if you have any concerns please feel free to contact us to resolve any problems before leaving negative feedback. Thanks for your understanding.

​

Notes:

​

• ​Heavy goods are going to be shipped by truck, please make sure that the receiver has unloading equipments or proper methods for unloading before purchasing. Logistics will not responsible for any unloading.

•  The carrier may changed to your local logistics if you’re in remote area. Please contact us via ebay message if ebay shows delivered while you didn’t get it. Thanks.

​

Shipping:

• Your orders will be shipped within 2 working days after you pay. Usually it will takes nearly 10 working days to your place.

​

• If you have any needs for local pick up, please feel free to email us for detail information.
