mini excavators

The AGT 1.3Ton Mini Excavator Digger is a small and flexible piece of construction equipment, equipped with a Kubota D722 diesel engine that delivers 13.7 horsepower with a 3-cylinder design. It has a maximum digging depth of 7.4 feet and a bucket capacity of 0.03 cubic meters, making it perfect for small-scale digging projects. This mini excavator boasts a maximum power of 10.2 kW and a net horsepower range of 10-20 HP, suitable for various work scenarios. Featuring a rubber-tracked design and compact body, it can easily handle tight spaces and complex terrain, with a climbing ability of 35%.

Specification

• Model Information Configuration Status √Standard, △Optional , ×None	DM20
  Basic Performance Parameters
  Working Weight(kg)	1300
  Bucket capacity(m³)	0.03
  Travel speed low/high speed(Km/h)	0-2
  Climbing ability(%)	30
  Turn speed(r/min)	10
  A:Maximum Digging Height(mm)	2890
  B:Maximum Unloading Height(mm)	1958
  C:Maximum Digging Depth(mm)	2257
  D:Maximum Vertical Excavation Depth(mm)	2090
  E:Maximum Excavation Radius(mm)	3305
  F:Minimum radius of Gyration(mm)	1584
  G:Minimum tail radius of Gyration(mm)	849
  H:Maximum Lifting height of Bulldozer	288
  I:Maximum Digging height of Bulldozer	146
  Equipment Body
  J:Overall Length(mm)	3200
  K:Overall Width(mm)	936
  L:Overall Height(mm)	2210
  Bulldozer Width/Height(mm)	1000/180
  Engine
  Engine Brand	Kubota
  Engine model	D722
  Maximum horsepower(ps)	13.7
  Maximum power(Kw)	10.2
  Maximum speed(rpm)	2500
  Number of cylinders	3
  Cooling method	Water cooling
  Engine oil replacement(L)	3.8
  Fuel type	Diesel
  Fuel Label	92#
  Fuel tank
  Fuel tank(L)	8.7
  Hydraulic oil tank(L)	14.2

TECHNICAL DESCRIPTION:

• CFG35UF is a fully hydraulic track excavator with beautiful appearance, 360° rotatable flat roof, 1980mm long small rear end, all of these ensure the work in limited place. And the KUBOTA three cylinders water cooling diesel engine, which has the rated power of 15.4kW/2400rpm. The engine is installed at the rear end of machine with a flexible supporting.
• Air filter is a fixed equipment of 119540-12520; safety device (optional) on engine inlet pipe ensures more safety and stability of the engine. Large capacity water tank with air exhaust device for the engine cooling system can effectively protect engine and ensure normal work in high temperature and prevent overheating.
• The main pump and engine directly connected with coupling, maximum work pressure is 23.5 (P1/P2) Mpa, 19(P3)Mpa. Use flexible shaft coupling installed in the diesel motor flywheel to drive the main pump, perfectly avoid the influence on main pump, which is caused by the vibration of diesel motor.

Note: If you have any needs for local pick up, please feel free to send us a message for detail information.

• Top-Tier Performance

  Powered by a KUBOTA engine that meets T4F, Stage5, and China IV emission standards, delivering robust, reliable power. Paired with a high-performance hydraulic system and components, it ensures smooth, coordinated operation of the boom, arm, bucket, and swing—making it stand out in its weight class.

• Simple, Intuitive Controls

  Clear, easy-to-use monitoring gauges that keep you in control at a glance.

• Easy Maintenance

  Fully opening doors and hoods make daily checks and filter replacements quick and hassle-free. The left lower service door is designed for easy access to the multi-way valve, eliminating the need to remove covers during maintenance or repairs.

1️⃣A quick hitch (QH) on an excavator is a latching device that enables attachments to be connected to the dipper arm of the plant and interchanged quickly.

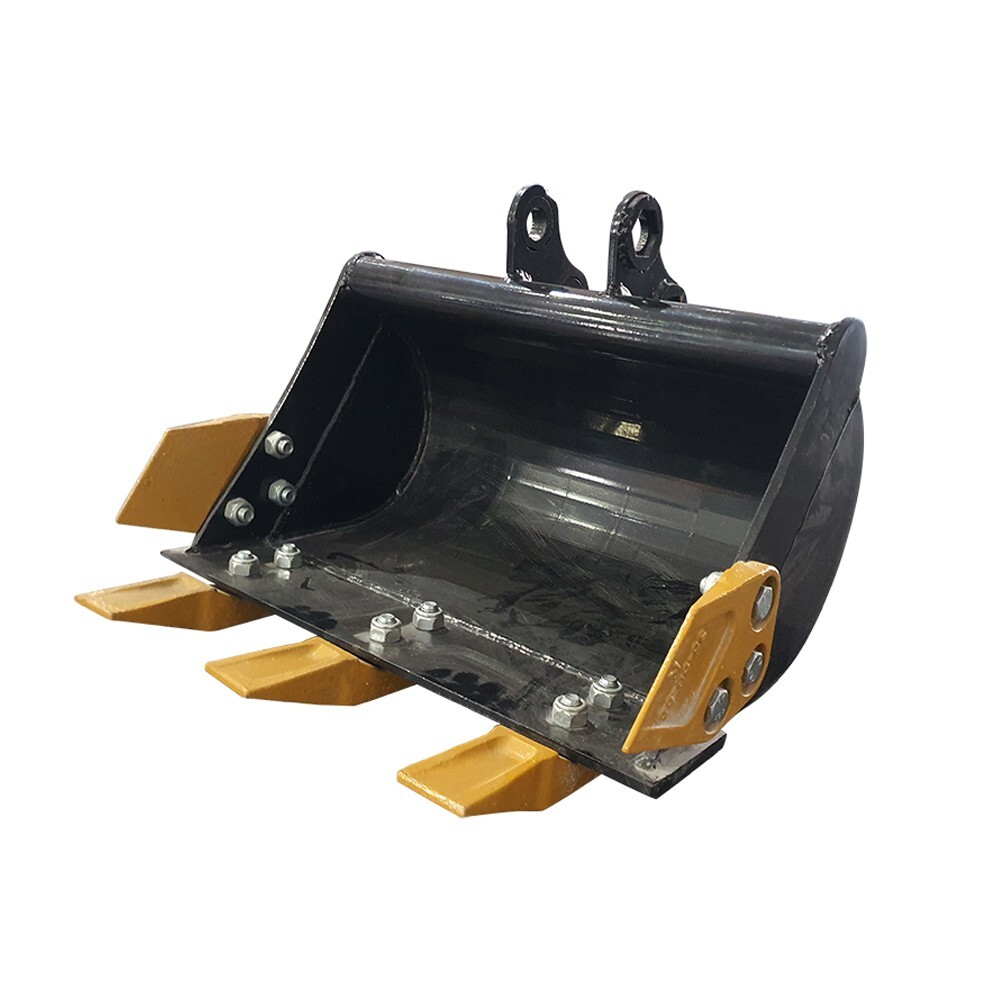

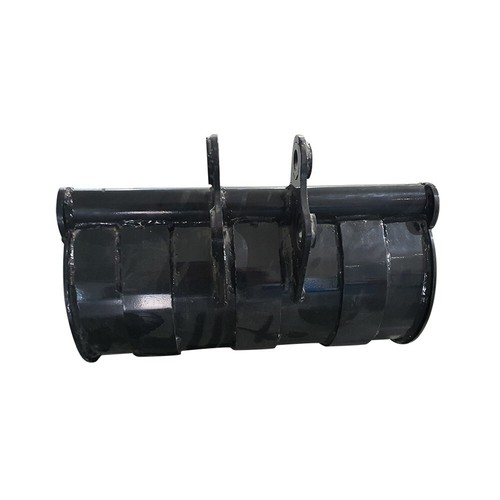

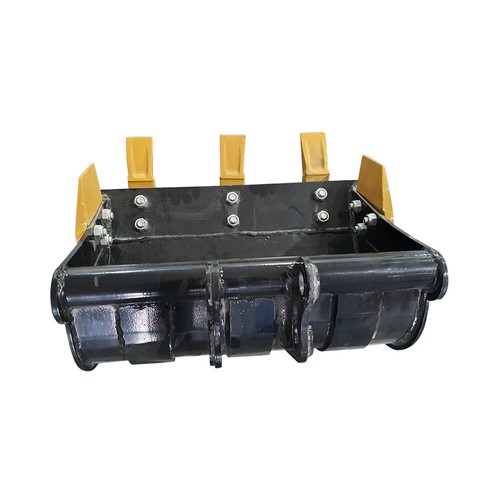

Before purchasing this 1000mm plain bucket attachment, please make sure to confirm the connection size first. Only when your mini excavator and 1000mm plain bucket attachment has same connection size, then you can purchase it. If you are not sure whether the excavator connection size is consistent with the 1000mm plain bucket attachment, you can contact our customer service through eBay messages and send us your mini excavator pictures, we will help you to confirm

Engine

– Maximum Power (Kw): 9.8

– Maximum Speed (rpm): 3600

– Number of Cylinders: 1

– Cooling Method: Air-cooled

– Engine Oil Capacity (L): 1.1

– Fuel Type: Gasoline

– Fuel Label: 92#

– Theoretical Fuel Consumption (L/h): /

– Main Pump Model/Type: High and Low Pressure Gear Pump (6+3)

– Main Pump Brand: 6+3

– Rated Pressure (Mpa): 16

– Maximum Flow Rate of Main Pump (L/min): 21.6

Hydraulic System

– Multi-way Valve: 8-way Semi-hydraulic Multi-way Valve

– Multi-way Valve Brand: 8-way Semi-hydraulic Control

– Rated Pressure (Mpa): 16

– Travel Motor Speed Reduction Type: BMER3-350

– Travel Motor: Hydraulic

– Motor Displacement: 350

– Swing Motor Speed Reduction Type: BMI1-315

– Motor Displacement: 315

Track

– Rubber Track (Track Width * Pitch * Number of Links): 1807237

– Steel Track (Track Width * Pitch * Number of Links): –

– Rubber Pads: –

– Pedal: –

– Canopy: •

– Handrail: •

– Iron Chain: ○

– Rake: ○

– Log Grab: ○

– Ripper: ○

– Hydraulic Hammer: ○

– Thumb Grab: Mechanical Thumb Grab

– Configuration: –

– Tensioning Method: Mechanical Tensioning

– Air Conditioning: –

Fuel Tank

– Fuel Tank Capacity (L): 6.6

– Hydraulic Oil Tank Capacity (L): 10
