Price: 34,999.00 USD

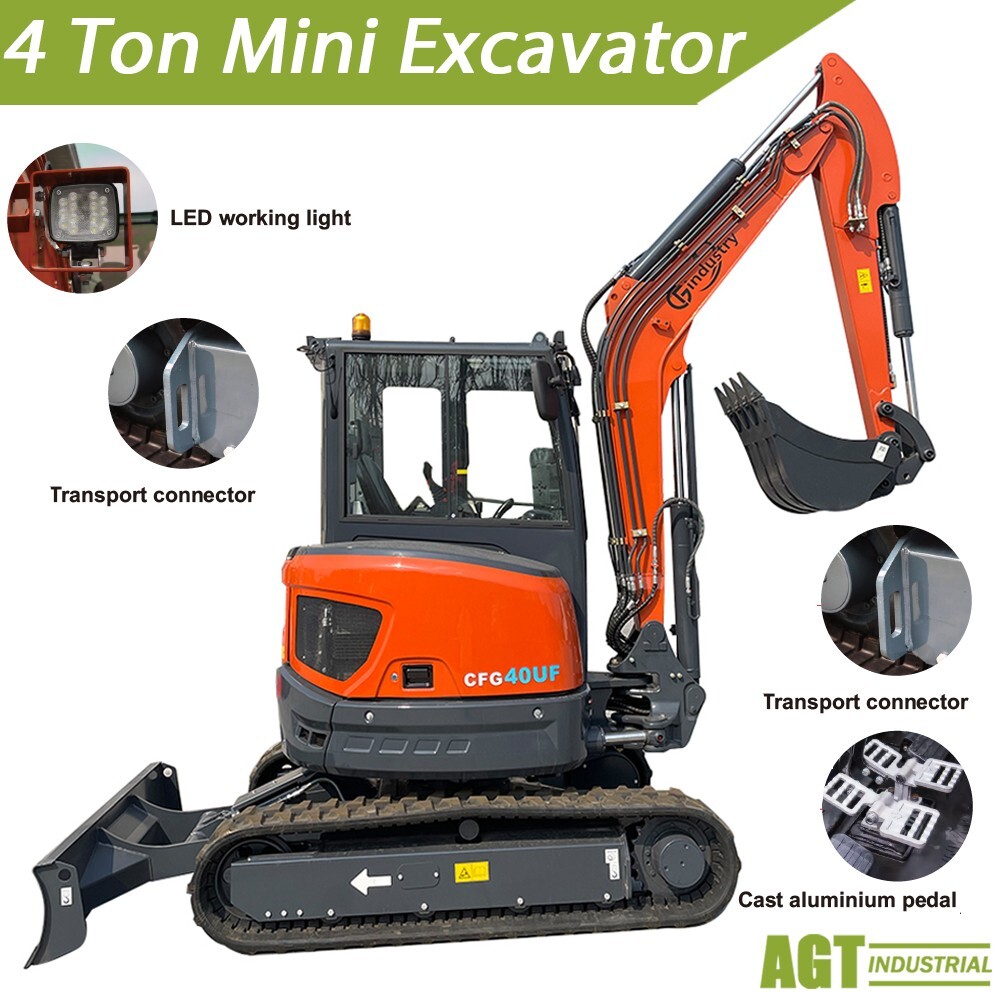

4 Ton Mini Excavator Digger Hydraulic 25HP Kubota EngineTracked Crawler EPA 40UF
Shipment from Chicago!
-❤————-❤—————❤—————-❤—————-❤—————–❤————–❤—————❤————–❤————❤————
Features:
1. CFG40UF is an all hydraulic track excavator with beautiful appearance, 360° rotatable flat roof, 850mm long small rear end, all of these ensure the work in limited place.
2. The engine is KUBOTA 3-cylinder water-cooling diesel engine which has a normal rated power of 18.2kW/2200rpm. Use flexible supporting breadthwise, install the engine at the rear end of machine.
3. Large capacity water tank with air exhaust device for the engine cooling system can effectively protect engine and ensure normal work in high temperature and prevent overheating.
4. The main pump and engine directly connected with coupling, maximum work pressure is 24.5 Mpa. Use flexible shaft coupling installed in the diesel motor flywheel to drive the main pump, perfectly avoid the influence on main pump, which is caused by the vibration of diesel motor.
5. Hydraulic pump, main valve, drive motor and swing motor which are products of international brand with perfect quality and stable work condition can ensure the stable work of the whole system.
Technical Parameters:
Type Of Cab: Cabin/Canopy
Bucket Capacity. std. : 0.11m³
Bucket Width: 20.47″
Machine Weight: 8487.79/ 8267.33 lbs
Overall Length: 192.51″
Overall Height: 100.59″
Overall Width: 66.92″
Ground Clearance: 10.62″
Engine Brand: KUBOTA
Engine Model: D1703-E4B-SWD-1
Engine Displacement: 1.647L
Engine Output: 18.2/2200 kW/pm
Arm Length: 53.15″ | 61″
Max Cutting Height: 193.9″ | 198.62″
Max Loading Height: 133.85″ | 138.58″
Max Digging Depth: 122.83″ | 130.70″
Max Vertical Wall Digging Depth: 104.92″ | 112.6″
Max Digging Reach: 212.20″ | 219.49″
Boom Swing Angle (Left/ Right): 72°/ 44°
Front Swing Radius: 89.17″ | 91.41″
Tail Swing Radius: 33.46″
Max Digging Force (Arm): 19.8kN | 18kN
Max Digging Force (Bucket): 31.8kN
Track Type: Rubber Track/ Steel Track
Track Width: 11.81″
Track Length: 85.15″
Length to Center of Rollers: 65.75″
Lenhth to Center of Track: 55.12″
Travelling Speed (High/Low): 4.0/ 2.3 km/h
Gradeability: 30°
Swing Speed: 9.5 rpm
Ground Pressure: 33.99 kPa
Dozer Width: 66.93″
Dozer Height: 14.41″
Dozer Lifting Capacity (Height/Depth): 13.27″ | 14.80″
Hydraulic Pumps Type: 1 variable plungerpump
Hydraulic Pumps Displacement: 1×88 L/min
Hydraulic Pressure: 24.5 MPa
Fuel Tank Capacity: 40L
Hydraulic Oil Tank Capacity: 41L
Warranty:
- 1 Year Warranty Offered.
- We pride ourselves on our customer service, in the unlikely event if you have any concerns please feel free to contact us to resolve any problems before leaving negative feedback. Thanks for your understanding.
Notes:
- Please note that we have 3 brands TOPCAT, MOWER KING, AGROTK, products of these 3 brands are totally exactly the same. Please note that the we will ship the brand at random.
- Heavy goods are going to be shipped by truck, please make sure that the receiver has unloading equipments or proper methods for unloading before purchasing. Logistics will not responsible for any unloading.
- l The carrier may changed to your local logistics if you’re in remote area. Please contact us via ebay message if ebay shows delivered while you didn’t get it. Thanks.
Shipping:
- Your orders will be shipped within 3 working days after you pay. Usually it will takes nearly 10 working days to your place.
- If you have any needs for local pick up, please feel free to email us for detail information.
Item specifics
-
Condition
-
-
Fuel tank capacity
-
40 L
-
Maximum Digging Depth
-
122.83″
-
Engine Brand
-
KUBOTA
-
Bucket width
-
20.47″
-
MPN
-
CFG-40UF
-
Make
-
CFGindustrial
-
Equipment Type
-
Mini Excavator
-
Model Year
-
2023
-
Net Horsepower (HP)
-
25HP
-
Maximum Digging Height
-
133.86″
-
Core Components
-
PLC, Pressure vessel, Engine, Gear, Motor, Pump, Bearing, Gearbox
-
Rated Speed
-
4km/h
-
Model
-
CFG-40UF
-
UPC
-
721545279002
