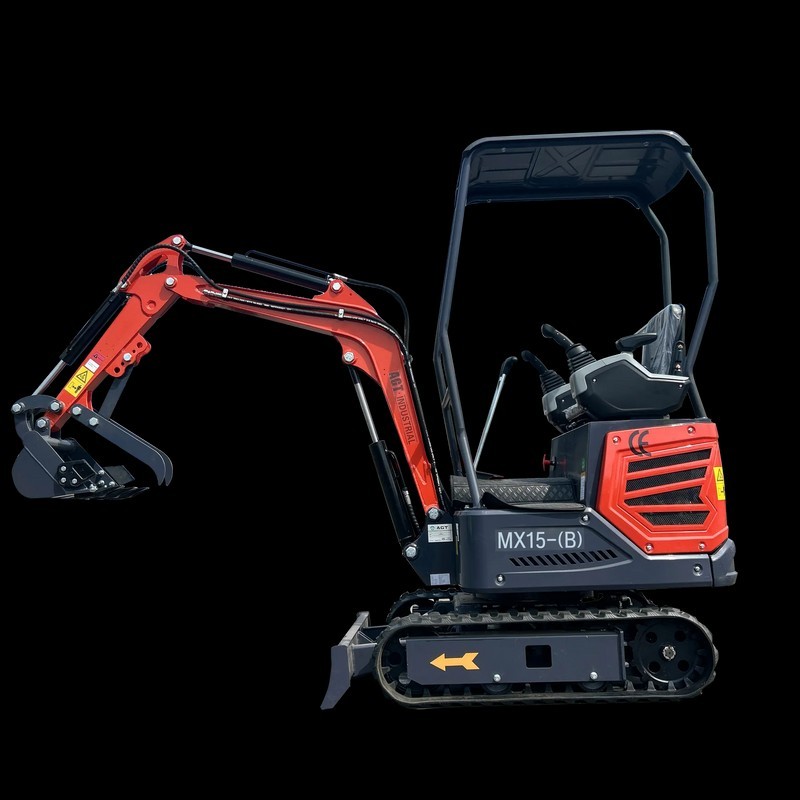

AGT MX15-B Mini Excavator Briggs & Stratton Motor 2 Year Warranty

 BUY NOW ON EBAY


Price: 6,800.00 USD

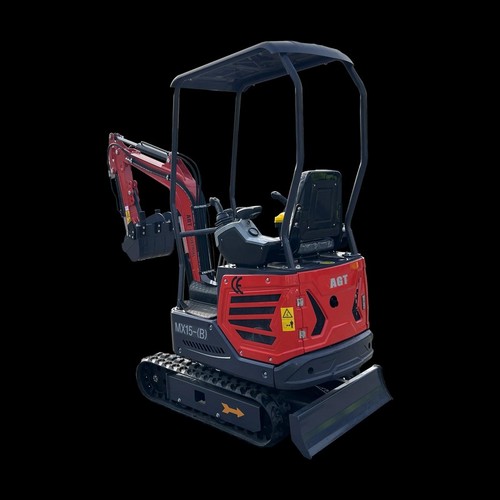

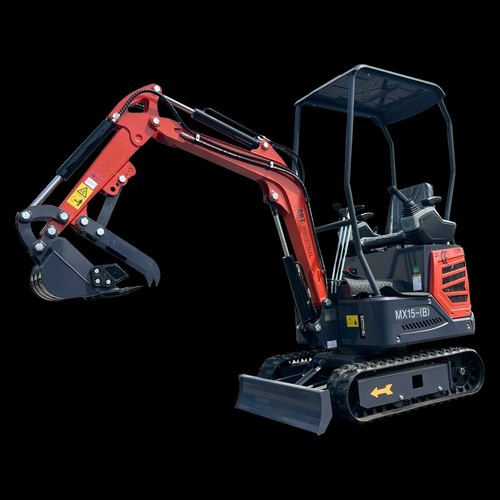

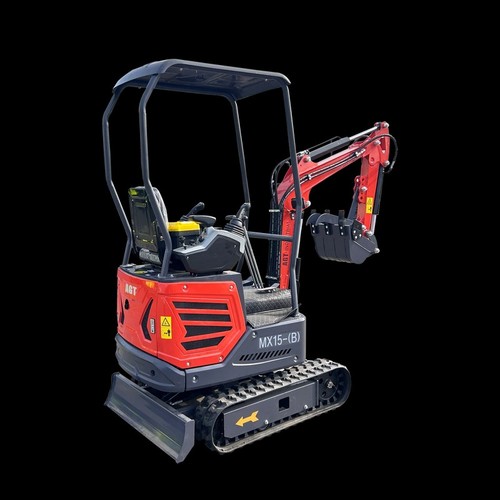

The AGT MX15‑B is a rugged 1‑ton gasoline-powered mini excavator driven by a 13.5 HP XR2100 B&S engine. Equipped with rubber tracks, manual thumb, pilot controls, and a grading blade, it offers digging, trenching, and grading capability in tight spaces—well-suited for landscaping, construction, and farming tasks.

Specs:

Weight: 2160lbs

Bucket Size: 16″

Travel Speed: 2mph

Climbing Ability (%) 30

Swing Speed (r/min) 10

Maximum Digging Force of Bucket (kN) 6

Maximum Digging Force of Stick (kN) 4

Maximum Digging Height: 8’4″

Maximum Dumping Height: 5′ 8″

Maximum Digging Depth: 5′ 9″

Maximum Vertical Digging Depth (mm) 1638

Maximum Digging Radius (mm) 3041

Minimum Swing Radius (mm) 1440

Minimum Tail Swing Radius (mm) 828

Maximum Lifting Height of Dozer Blade (mm) 162

Maximum Ground-Engaging Height of Dozer Blade (mm) 196

Dimensions

Parameter Value (mm)

Total Length 2882

Total Width 962

Total Height 2219

Wheelbase 900

Track Gauge 762

Width/Height of Dozer Blade 907 / 200

Engine Specifications

Engine Brand Briggs & Stratton

Engine Model XR2100

Maximum Horsepower (ps) 13.5

Maximum Power (kW) 9.8

Maximum Speed (rpm) 3060

Number of Cylinders 1

Cooling Method Air-cooled

Engine Oil Replacement Capacity (L) 1.1

Fuel Type: Gasoline

Fuel Grade 93 recommended

Hydraulic System

Main Pump Type/Model Gear Pump / 06

Main Pump Brand 6

Rated Set Pressure (MPa) 16

Maximum Flow of Main Pump (L/min) 21.6

Multi-way Valve 8-Link Manual Multi-way Valve

Multi-way Valve Brand

Mechanical Rated Set Pressure (MPa) 16

Travel Hydraulic Motor Type BMER3-350

Travel Motor Brand Hydraulic

Motor Displacement (cc/rev) 350

Swing Hydraulic Motor Type BM1-315

Displacement (cc/rev) 315

Track Specifications

O-Rubber (Width Pitch Sections) 180*72*37

Tensioning Method Mechanical Tensioning

Fluid Capacity:

Fuel Tank: 5.6L or 1.5 Gallons

Hydraulic Oil Tank: 15.8L or 4.2 Gallons
