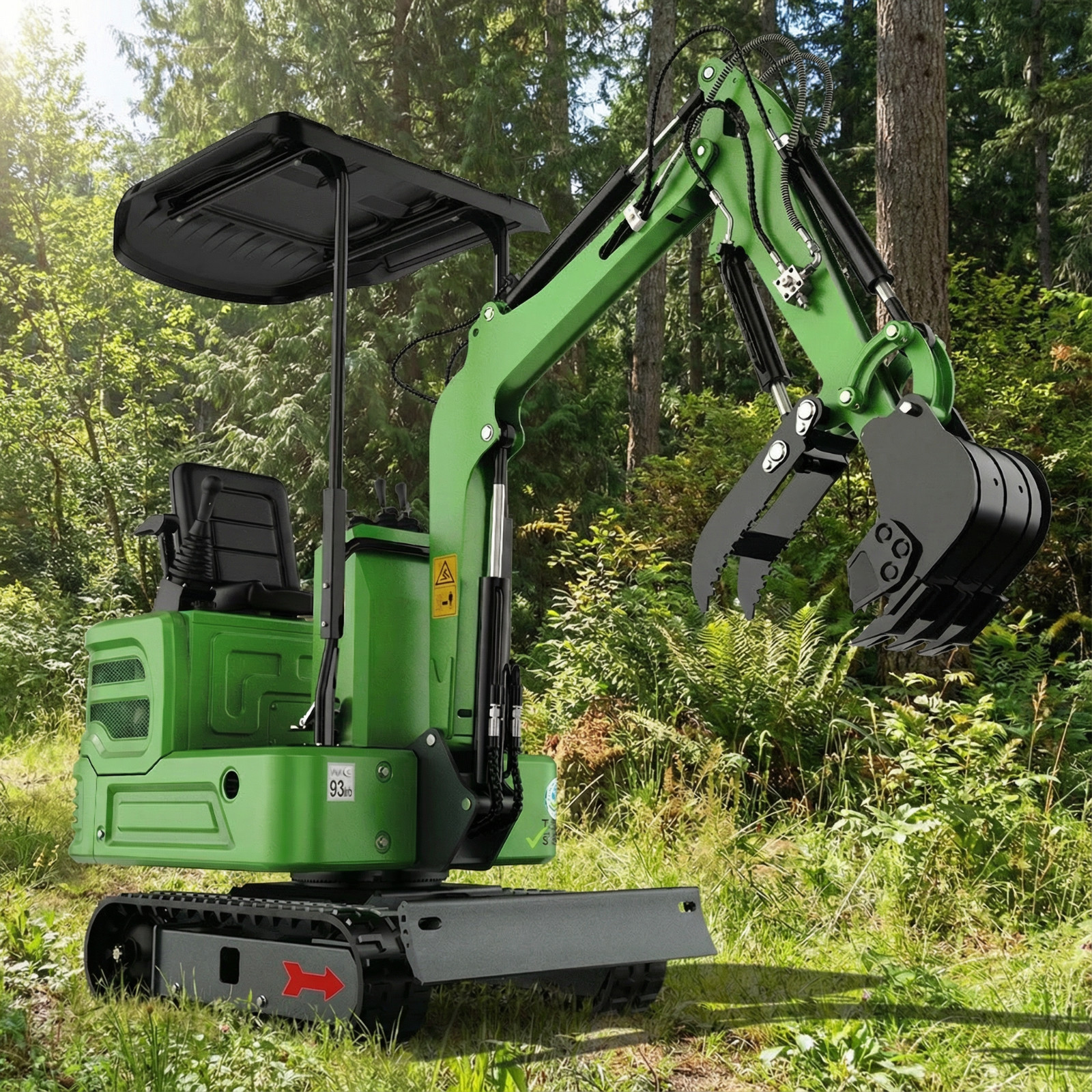

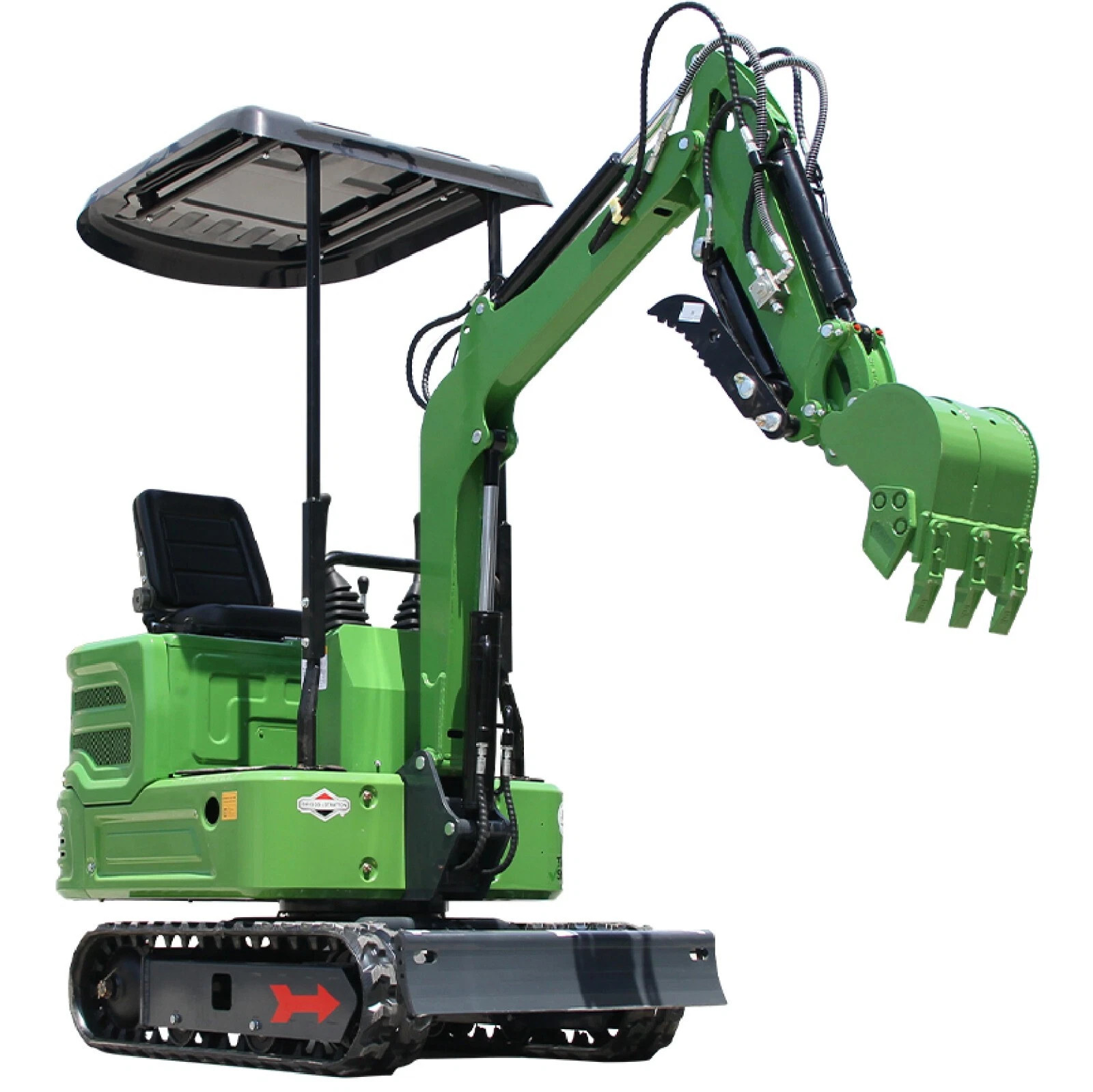

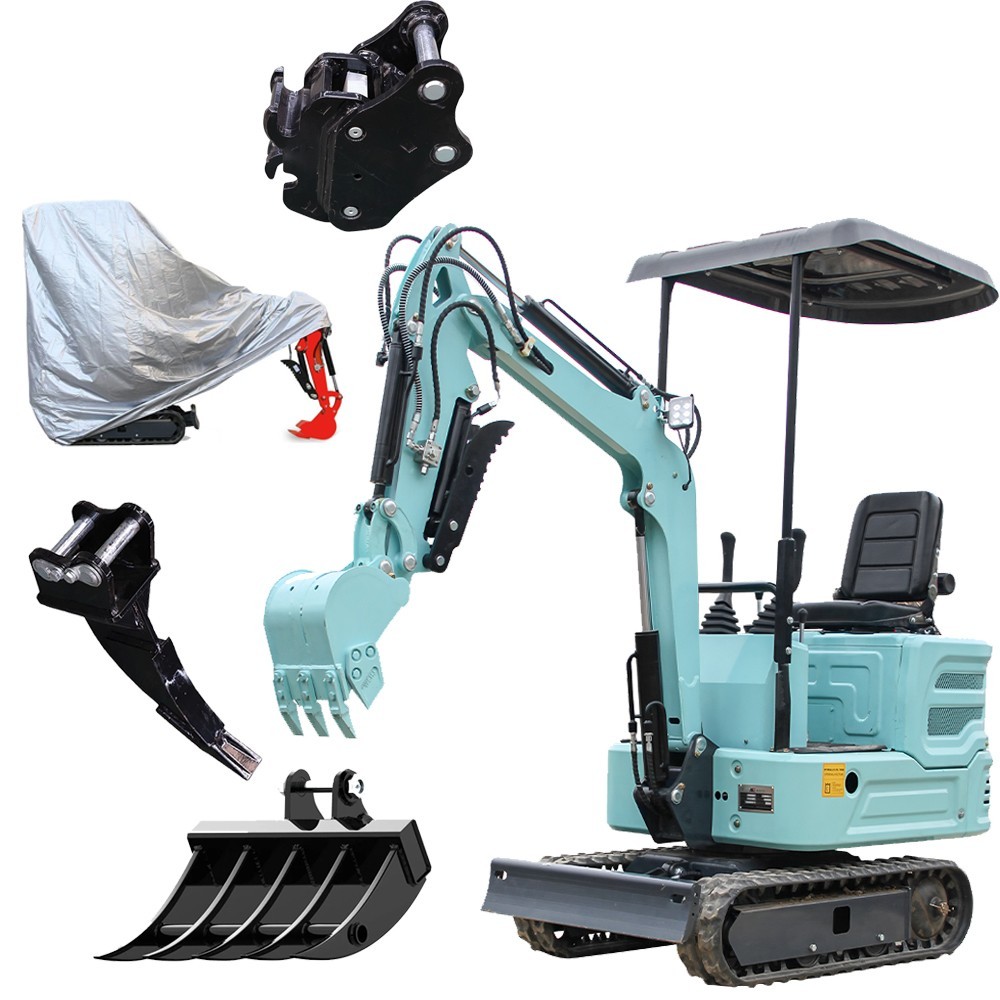

This compact track excavator combines a 10 kW B&S engine with a 0.018 m³ bucket and a narrow 1100 mm transport width. Its compact dimensions make it a practical option where access space is limited.

The machine is equipped with a hydraulic system rated at 18 MPa, a 7.3 L fuel tank, and a 10.9 L hydraulic oil tank. With four track rollers and 180 mm-wide tracks, the undercarriage is designed for stable operation.

Key Specifications

• Bucket Capacity: 0.018 m³
• Engine Power: B&S 10 kW
• Overall Length (Transport): 3184 mm
• Overall Width (Transport): 1100 mm
• Overall Height (Transport): 2110 mm
• Track Rollers: 4 pcs
• Track Width: 180 mm
• Counterweight Ground Clearance: 366 mm
• Minimum Ground Clearance: 197 mm
• Wheelbase: 883 mm
• Swing Speed: 9 r/min
• Fuel Tank Capacity: 7.3 L
• Hydraulic Oil Tank Capacity: 10.9 L
• Hydraulic System Pressure: 18 MPa
•


Important Notes

• Please confirm the final product model, configuration, included accessories, and technical specifications before ordering.
• Please ensure that the delivery address is accessible for freight delivery and that suitable unloading equipment is available if required.
• Product configuration and shipment details should be confirmed before dispatch.

US Stock, Warranty & Support

• US Stock Available: Ships from our U.S. warehouse for domestic delivery within the United States.
• 1-Year Warranty: Includes a one-year warranty for non-human-caused damage.
• Lifetime Technical Support: Lifetime technical assistance is available for product operation, troubleshooting, and maintenance guidance.
